Live Tracking & WebSocket

Stream vehicle positions over a WebSocket — the architecture, the authenticated channel, the public tracking channel, and how it behaves under load.

Yipii streams live vehicle positions over a socket.io connection to the AVL server. This page is the contract: how to connect, what you get, and why what you get may be smaller than you expected.

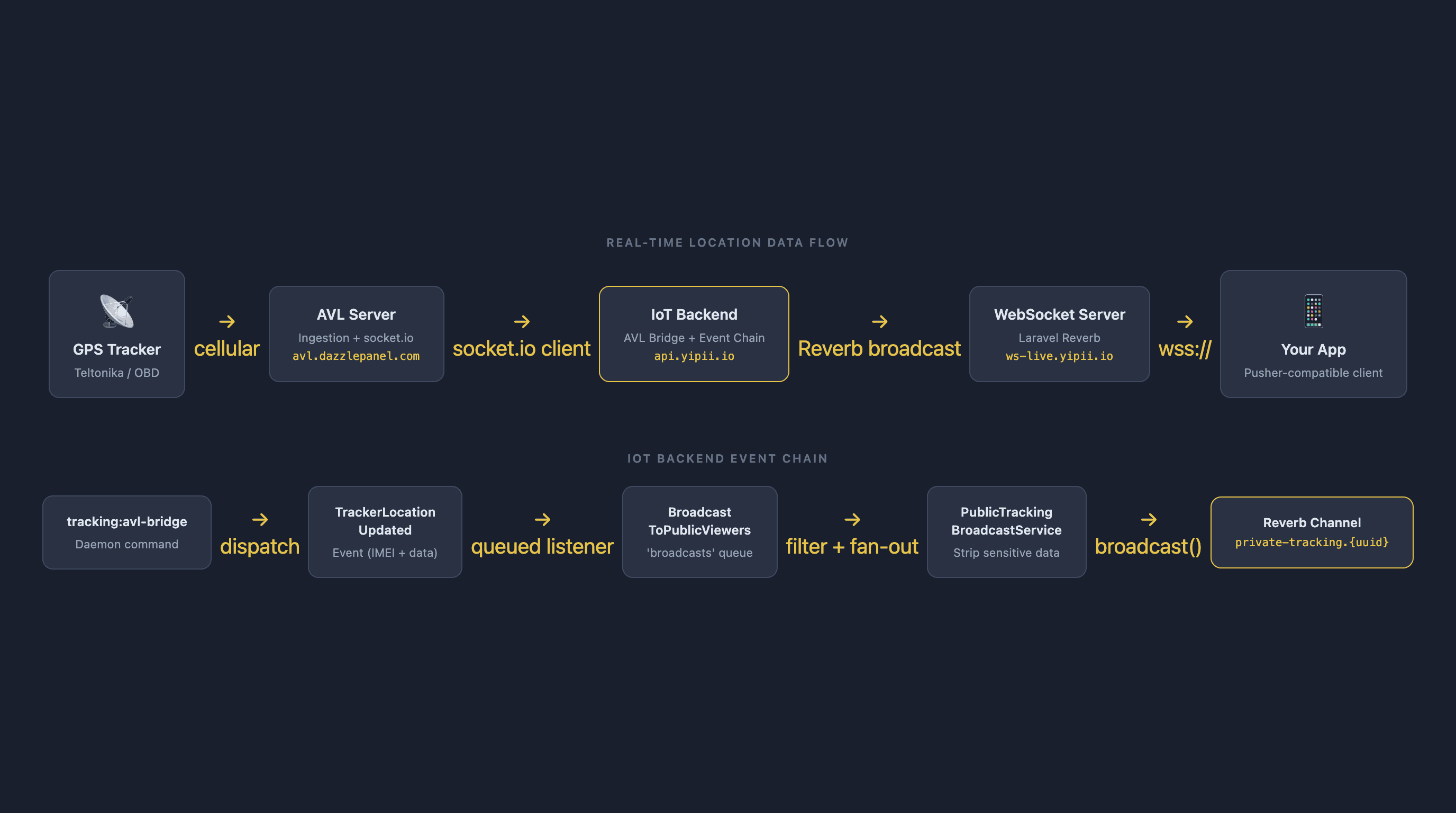

Architecture

Trackers send positions over cellular to the AVL server, which decodes the protocol, enriches the fix (address, status, trip, sensors) and pushes it straight out to connected socket.io clients. The REST API on api.yipii.io is a separate service reading the stored, grouped history.

The stream is not a Pusher/Reverb channel. ws-live.yipii.io exists, but the only things on it are public tracking links, in-app user notifications and driver messaging. There is no channel that carries a fleet's positions, and subscribing to one gets you a connection that never emits.

Live positions over socket.io

Connect

One socket.io connection per account, carrying every asset you want. The token and the asset list are query parameters on the handshake.

import { io } from "socket.io-client";

const socket = io("https://avl.dazzlepanel.com", {
  query: {
    access_token: ACCESS_TOKEN,
    asset_ids: JSON.stringify([516, 517, 908]),
  },
});

socket.on("location", (data) => {
  const updates = Array.isArray(data) ? data : [data];
  for (const u of updates) {
    console.log(u.assetId, u.latitude, u.longitude, u.speed);
  }
});

Get the asset ids from GET /api/{account_key}/asset_map — see the integrator setup guide.

Handshake parameters

Events

The socket.io event name is the message type, and the payload is the object itself — there is no envelope to unwrap.

The first location message is an array — the last known position of every asset you subscribed to. Everything after it is a single object. Handle both, as the example above does.

Out-of-order frames are dropped server-side per asset, so you will not see a position go backwards in time. Do not rely on dateUpdated for ordering; wsSeq is the monotonic sequence the server orders by.

Standard and detailed data

This is the part that surprises integrators. The standard payload is the default, always — a token alone does not buy the detailed one.

Detailed data is a paid tier. Two things have to be true to receive it:

1. The account's plan includes Detailed data.
2. The connection asks for it, with style=detailed.

Miss either and you get the standard payload. There is no error and no warning — the connection succeeds and the payload is smaller. Sending style=detailed on a plan without the tier is harmless and changes nothing.

What the standard payload contains

Exactly ten fields, and nothing else:

assetId · trackerImei · latitude · longitude · speed · course · dateUpdated · wsSeq · dateMoved · status

status is reduced to { "name": "Moving" | "Parked", "color": "#333333" } — derived from whether speed is above zero, not the real status engine.

{
  "assetId": 908,
  "trackerImei": "352094087883606",
  "latitude": 35.9873716,
  "longitude": 14.3283183,
  "speed": 13,
  "course": 146,
  "dateUpdated": 1745333252000,
  "dateMoved": 1745333252000,
  "wsSeq": 84213,
  "status": { "name": "Moving", "color": "#333333" }
}

The standard payload is also throttled to one frame per asset per 25 seconds, and carries no alert, vehicle_health or driver_behavior whatever you subscribe to.

What detailed adds

The complete decoded record: the real status object with its thresholds and colour, the resolved geoPoint address, sensors, beacons, the full ioData list, startStopTrip with its coordinate trail and scores, power, battery, gpsSignal, driverId, protocol, tracker, and more. No throttle. A worked example is in the integrator setup guide.

Which channels you get

Channels come with the plan, per account rather than per key:

Channels you ask for but are not on your plan are dropped silently at connect. If you subscribed to vehicle_health and never see one, check the plan before the code.

Why the default is the standard payload

The stream is one connection carrying a whole account's traffic at whatever rate the trackers report. The detailed record is roughly an order of magnitude larger and includes a trip's entire coordinate trail on every frame. The standard payload exists so that a consumer who only draws dots on a map costs what drawing dots on a map should cost.

Connection etiquette

The stream is built for one persistent connection per account, holding every asset you care about. It is not built for a connection per asset, and a fleet opened that way will be throttled or refused.

• Persist the connection. Reconnect with backoff; do not reconnect per request.
• Batch the asset list. One socket with 300 ids, not 300 sockets.
• Cache the token. It is valid for a year; fetching a new one per connect is unnecessary load on the auth server.
• Expect the first frame to be a batch, and size your handler for it.

Public Tracking WebSocket

For public tracking links where viewers don't have full API credentials. Uses session-based authentication with the same WebSocket server.

Overview

1. GET  /api/public/tracking/{uuid}/info      → Link details + access mode
2. POST /api/public/tracking/{uuid}/verify     → Session token (4h validity)
3. Connect WebSocket with session token
4. Subscribe to private-tracking.{uuid}
5. Listen for .location.updated events

Step 1: Get Link Info

Check the tracking link's access mode and status (no auth required):

GET https://api.yipii.io/api/public/tracking/{uuid}/info

{
  "uuid": "a1b2c3d4-e5f6-7890-abcd-ef1234567890",
  "display_name": "Bus Route 42",
  "access_mode": "public",
  "is_active": true,
  "is_expired": false,
  "is_within_schedule": true,
  "branding": {
    "logo_url": "https://...",
    "primary_color": "#E8C547",
    "company_name": "Yipii"
  }
}

Access modes:

Step 2: Verify and Get Session Token

POST https://api.yipii.io/api/public/tracking/{uuid}/verify

Public mode (no credentials):

{}

Email mode:

{
  "email": "viewer@example.com"
}

Email + code mode (two requests):

// First: request code
{ "email": "viewer@example.com" }

// Second: submit code
{ "email": "viewer@example.com", "access_code": "123456" }

Response:

{
  "success": true,
  "session": {
    "token": "abc123xyz...",
    "expires_at": "2026-01-30T15:00:00Z",
    "link": {
      "uuid": "a1b2c3d4-...",
      "title": "Bus Route 42"
    }
  }
}

The session token is valid for 4 hours by default.

Step 3: Connect WebSocket

import Pusher from 'pusher-js';

const pusher = new Pusher('public-tracking', {
  wsHost: 'ws-live.yipii.io',
  wsPort: 443,
  wssPort: 443,
  forceTLS: true,
  enabledTransports: ['ws', 'wss'],
  disableStats: true,
  cluster: '',
  authEndpoint: 'https://api.yipii.io/broadcasting/auth',
  auth: {
    headers: {
      'X-Session-Token': sessionToken,
    },
  },
});

Step 4: Subscribe to Channel

const channel = pusher.subscribe(`private-tracking.${uuid}`);

channel.bind('pusher:subscription_succeeded', () => {
  console.log('Subscribed — listening for location updates');
});

Step 5: Listen for Events

channel.bind('.location.updated', (data) => {
  const { location } = data;

  console.log(`Position: ${location.latitude}, ${location.longitude}`);
  console.log(`Speed: ${location.speed_kmh} km/h`);
  console.log(`Moving: ${location.is_moving}, Ignition: ${location.ignition}`);

  if (location.distance_km !== undefined) {
    console.log(`Distance to destination: ${location.distance_km} km`);
  }
  if (location.eta_minutes !== undefined) {
    console.log(`ETA: ${location.eta_minutes} minutes`);
  }
});

channel.bind('.link.expired', (data) => {
  console.log(`Link expired: ${data.reason}`);
  // reason: "arrival", "time_expired", "disabled", "schedule_ended"
  pusher.disconnect();
});

channel.bind('.schedule.changed', (data) => {
  if (!data.is_active) {
    console.log(data.message); // "Tracking available Mon-Fri 7am-4pm"
  }
});

channel.bind('.vehicle.changed', (data) => {
  console.log(data.message);
  if (data.new_location) {
    // Update map to new vehicle's position
  }
});

Location Event Payload

{
  "location": {
    "latitude": 35.9023,
    "longitude": 14.5134,
    "speed_kmh": 45,
    "heading": 180,
    "timestamp": "2026-01-30T10:30:00+00:00",
    "is_moving": true,
    "ignition": true,
    "street": "Triq il-Kbira",
    "town": "Iż-Żejtun",
    "country": "Malta",
    "distance_km": 0.8,
    "eta_minutes": 1
  }
}

Note: No internal identifiers (asset_id, IMEI, account info) are exposed. The distance_km and eta_minutes fields are only present when the link has arrival-based expiration configured.

Polling Fallback

If WebSocket is unavailable, poll the location endpoint every 30 seconds:

GET https://api.yipii.io/api/public/tracking/{uuid}/location
X-Session-Token: {session_token}

The response includes asset data with location fields matching the WebSocket payload structure.

Swift (iOS)

import PusherSwift

let options = PusherClientOptions(
    authMethod: .authRequestBuilder(authRequestBuilder: { request in
        var req = request
        req.addValue(sessionToken, forHTTPHeaderField: "X-Session-Token")
        return req
    }),
    host: .host("ws-live.yipii.io"),
    port: 443,
    useTLS: true
)

let pusher = Pusher(key: "public-tracking", options: options)
let channel = pusher.subscribe("private-tracking.\(uuid)")

channel.bind(eventName: "location.updated") { event in
    guard let data = event.data else { return }
    // Parse and update map
}

channel.bind(eventName: "link.expired") { event in
    // Show expired state
    pusher.disconnect()
}

pusher.connect()

Kotlin (Android)

val authorizer = HttpAuthorizer("https://api.yipii.io/broadcasting/auth").apply {
    setHeaders(mapOf("X-Session-Token" to sessionToken))
}

val options = PusherOptions().apply {
    setHost("ws-live.yipii.io")
    setWsPort(443)
    setWssPort(443)
    isUseTLS = true
    setAuthorizer(authorizer)
}

val pusher = Pusher("public-tracking", options)
val channel = pusher.subscribePrivate("private-tracking.$uuid")

channel.bind("location.updated") { event ->
    val data = JSONObject(event.data)
    val location = data.getJSONObject("location")
    // Update map
}

channel.bind("link.expired") { event ->
    // Show expired state
    pusher.disconnect()
}

pusher.connect()

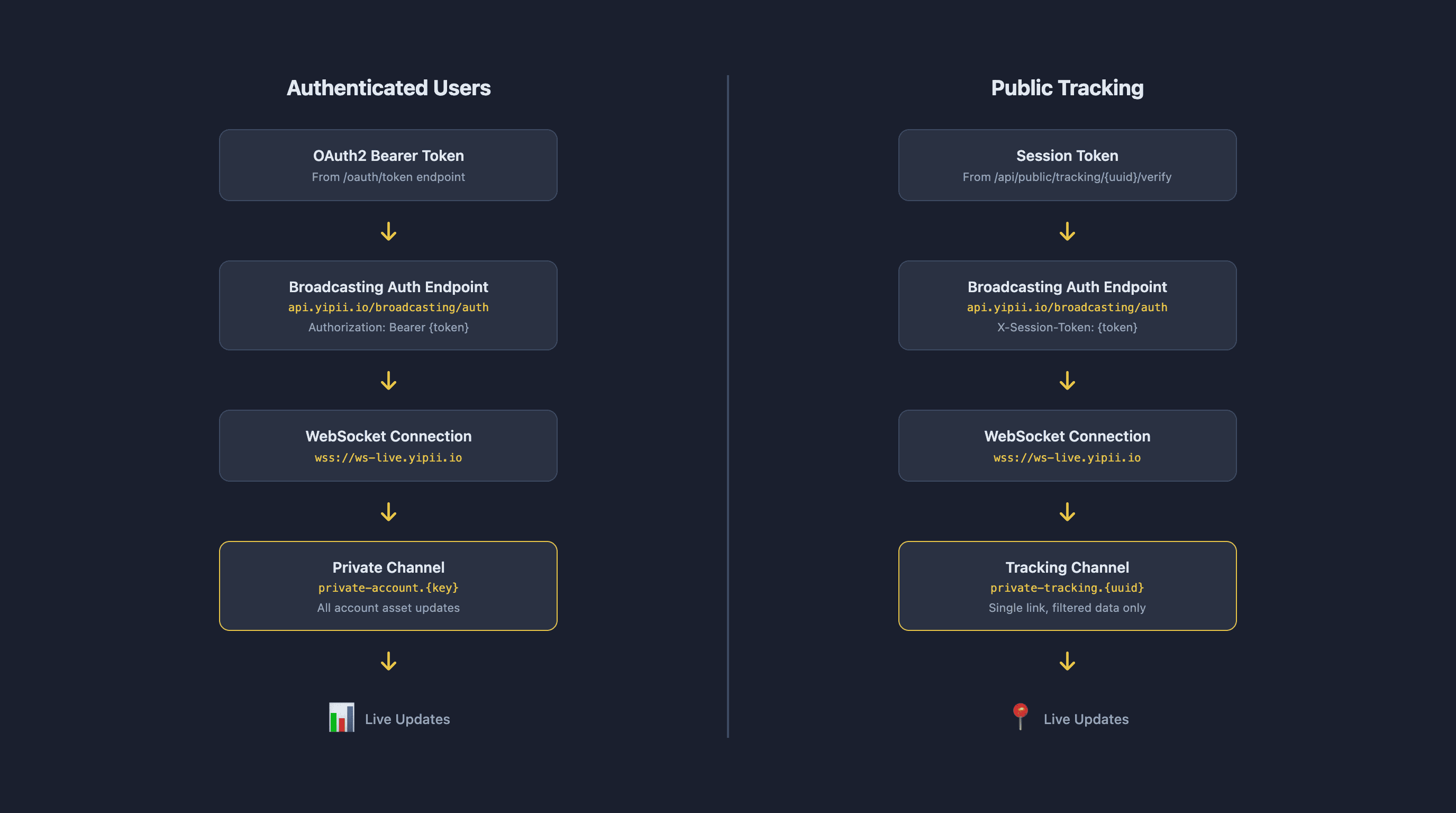

Security

Data Exposed to Public Tracking Viewers

Session Security

• Session tokens are high-entropy random strings tied to a specific tracking link UUID
• Cross-link protection — a session for link A cannot access link B's channel
• Expiration — sessions expire after a configurable period (default 4 hours)
• TLS required — all connections use WSS (port 443)
• Revocation — disabling a link immediately disconnects all viewers

Access Control for Public Tracking

Live stream security

• The token is validated on every connect, not only when you ask for detail. A rejected token is disconnected — it is never quietly downgraded to a smaller payload.
• asset_ids is treated as hostile input. It is intersected with the assets your account can actually see, and anything else is dropped before you are registered for broadcasts.
• Non-granted channels are dropped, silently, at connect.
• It fails closed. If the auth service cannot be reached and there is no recent cached result for your token, the connection is refused rather than served unscoped. A previously-validated token keeps working across a short outage.

Scaling & Performance

Ask for the assets you need, on one connection

Each asset produces a position every 10-30 seconds while moving. Subscribing to 1,000 when you draw 10 wastes bandwidth at both ends.

Narrow the asset_ids list, not the number of connections. There is no per-asset channel, and opening a socket per asset is the one pattern this server is not built for:

// Good — one connection, only the assets on screen
const socket = io("https://avl.dazzlepanel.com", {
  query: { access_token: TOKEN, asset_ids: JSON.stringify(visibleAssetIds) },
});

// Changing the set means reconnecting with a new asset_ids list.
socket.disconnect();

Deduplication

GPS trackers may send duplicate positions. Deduplicate by assetId + wsSeq — wsSeq is the server's monotonic counter, and unlike dateUpdated it never goes backwards:

const seen = new Map();
const MAX_AGE_MS = 5000;

function isDuplicate(update) {
  const key = `${update.assetId}-${update.wsSeq}`;
  if (seen.has(key)) return true;

  seen.set(key, Date.now());

  // Cleanup old entries periodically
  if (seen.size > 1000) {
    const cutoff = Date.now() - MAX_AGE_MS;
    for (const [k, time] of seen) {
      if (time < cutoff) seen.delete(k);
    }
  }

  return false;
}

Reconnection

Pusher clients reconnect automatically with exponential backoff. For public tracking, validate the session before reconnecting:

pusher.connection.bind('disconnected', () => {
  fetch(`https://api.yipii.io/api/public/tracking/${uuid}/info`)
    .then(res => res.json())
    .then(info => {
      if (info.is_active && !info.is_expired) {
        pusher.connect(); // Session still good
      } else {
        showExpiredMessage();
      }
    });
});

Rate Limits

Public Tracking:

Typical Update Frequency:

WebSocket Authentication Errors
